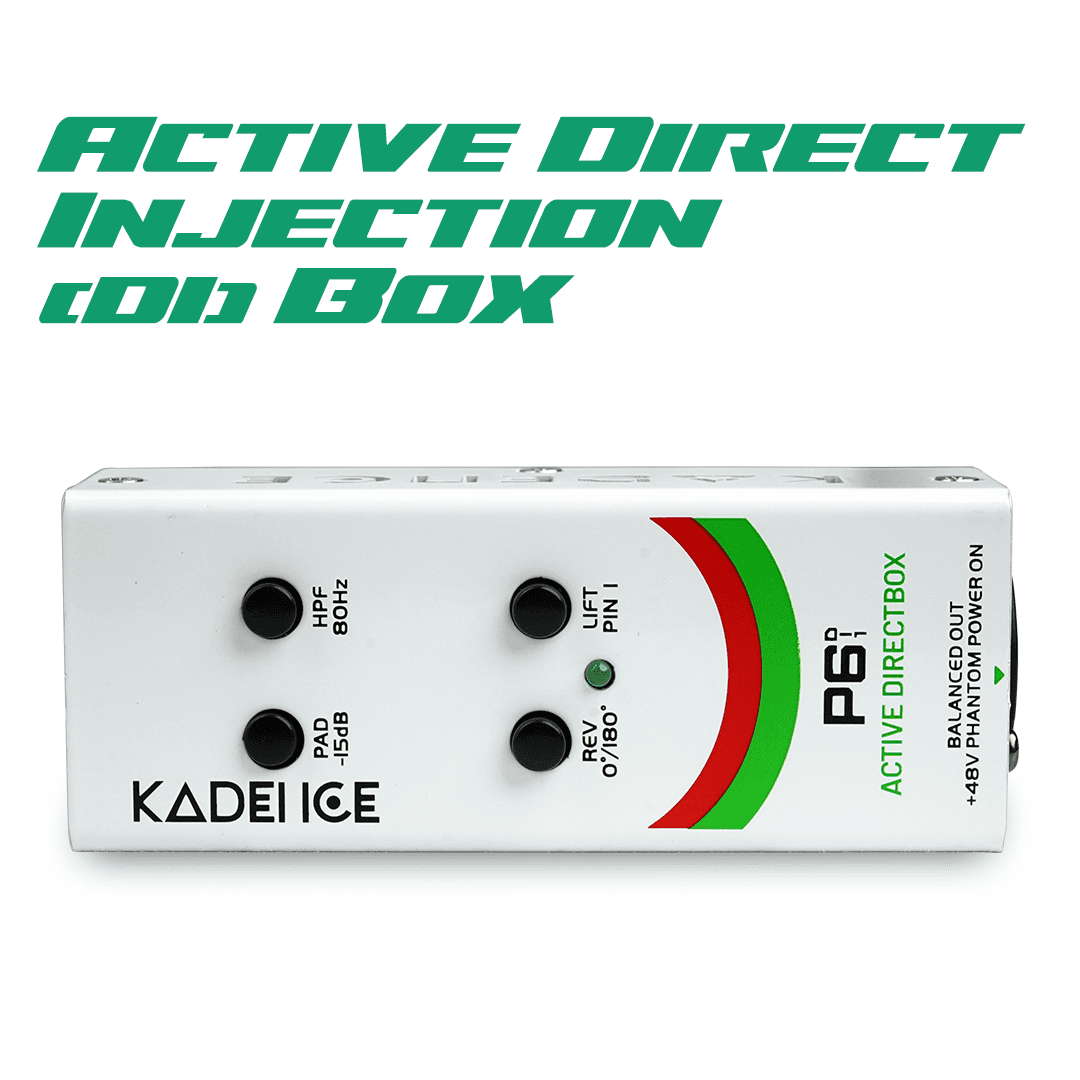

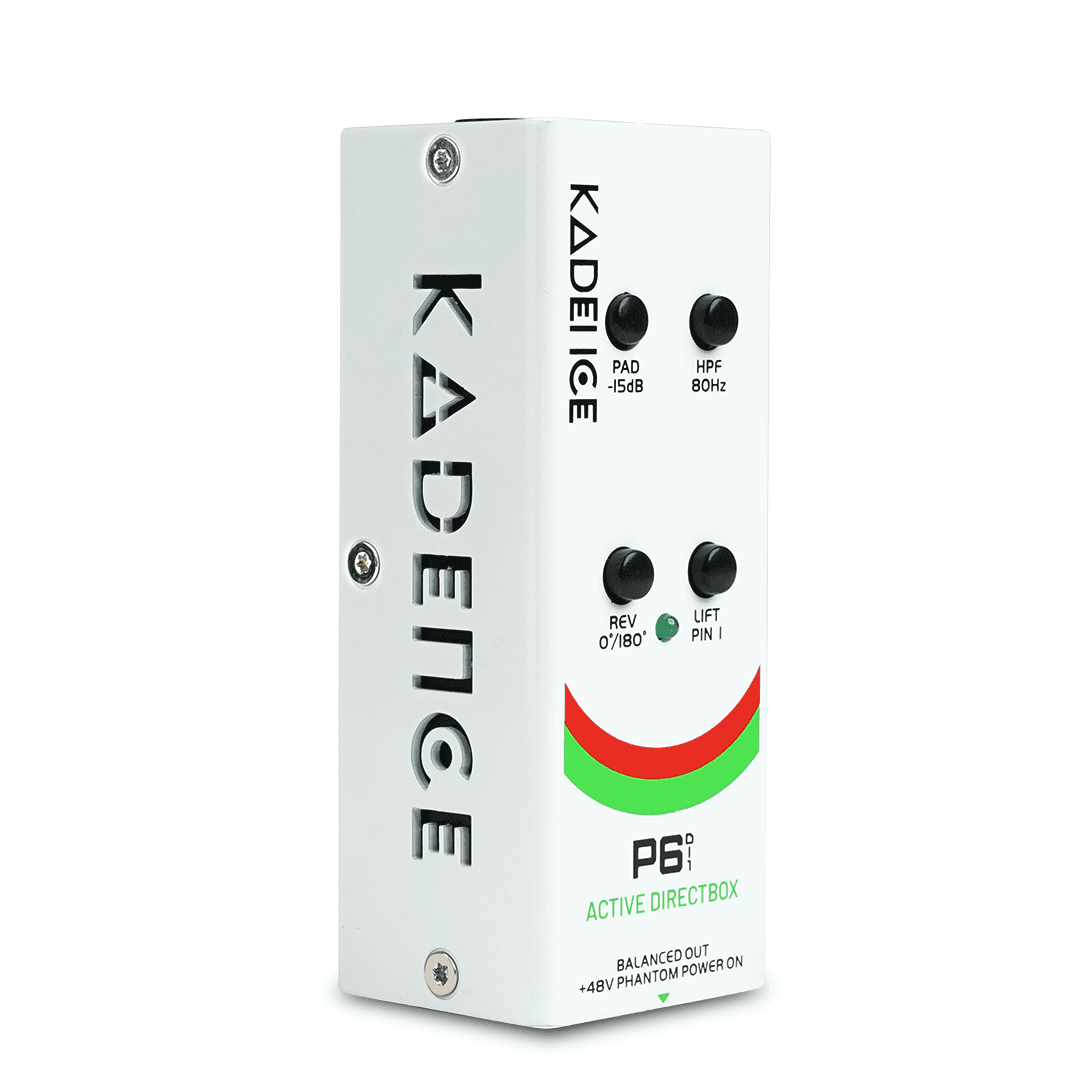

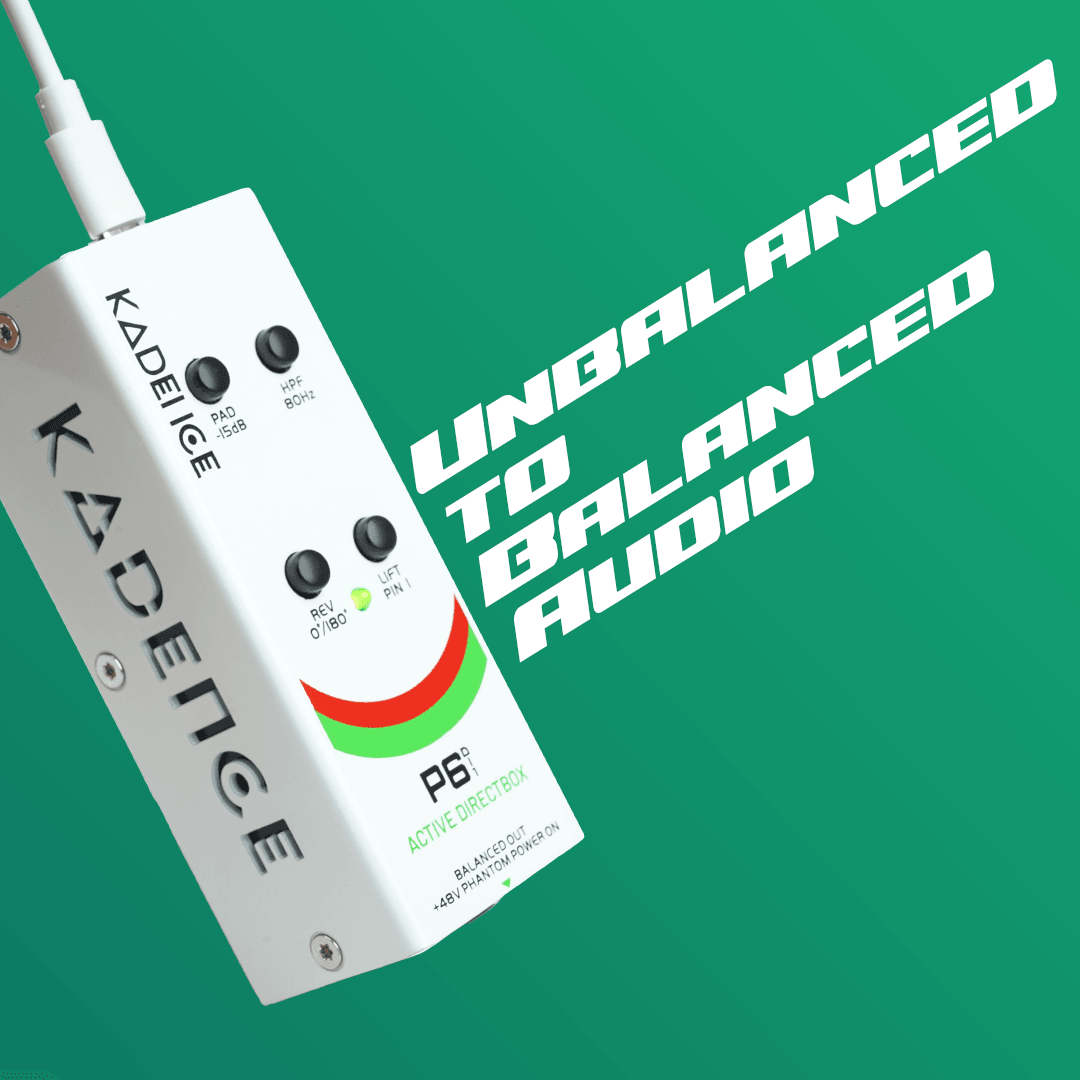

Kadence P6 Active DI Box
The P6 is designed for musicians, bands, sound engineers, DJs, recording professionals, event technicians and live performers who need to connect instruments or other unbalanced audio sources to mixers, PA systems or recording equipment. It is particularly useful for anyone looking for a flexible DI solution with THRU output, PAD, high-pass filter, phase reversal and ground lift.

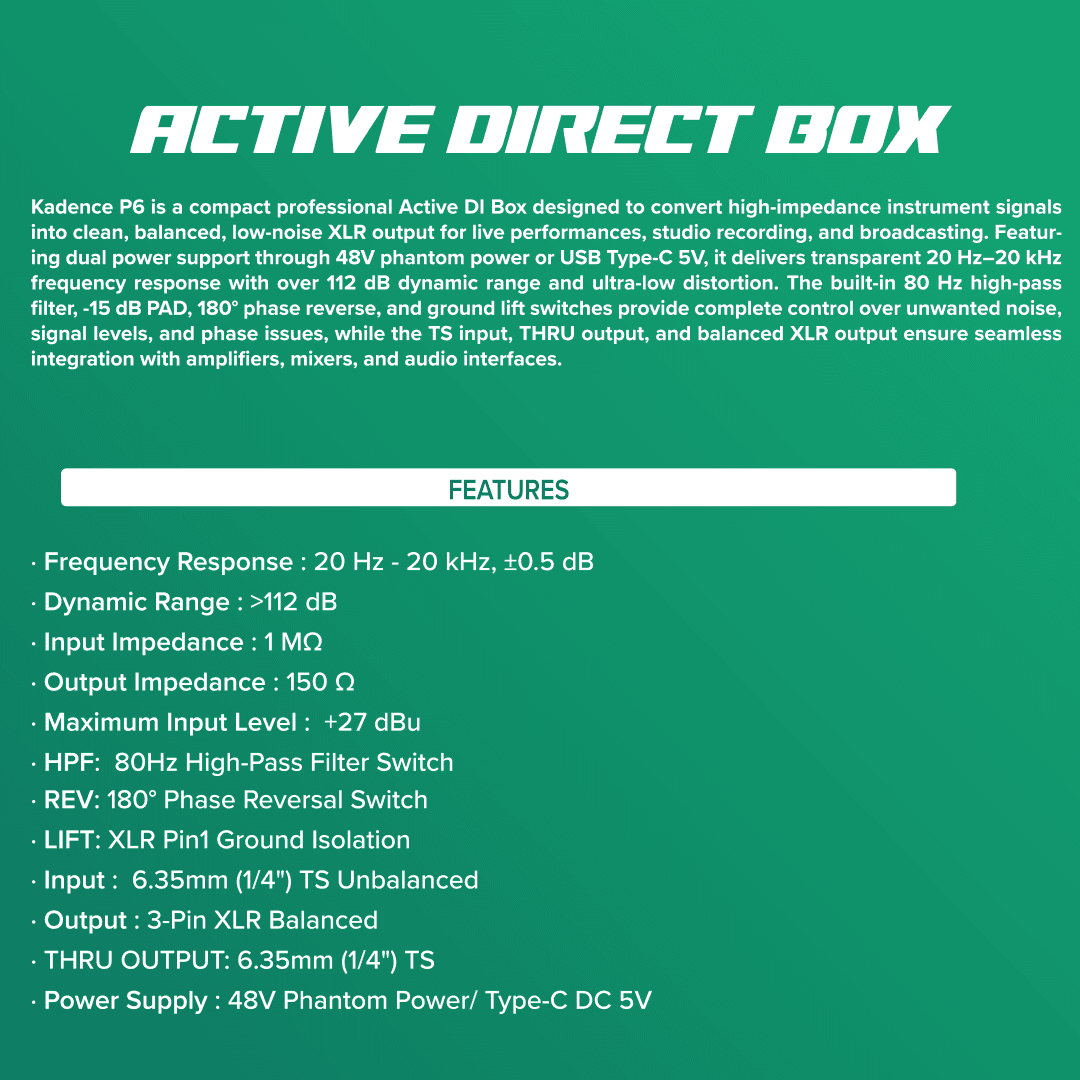

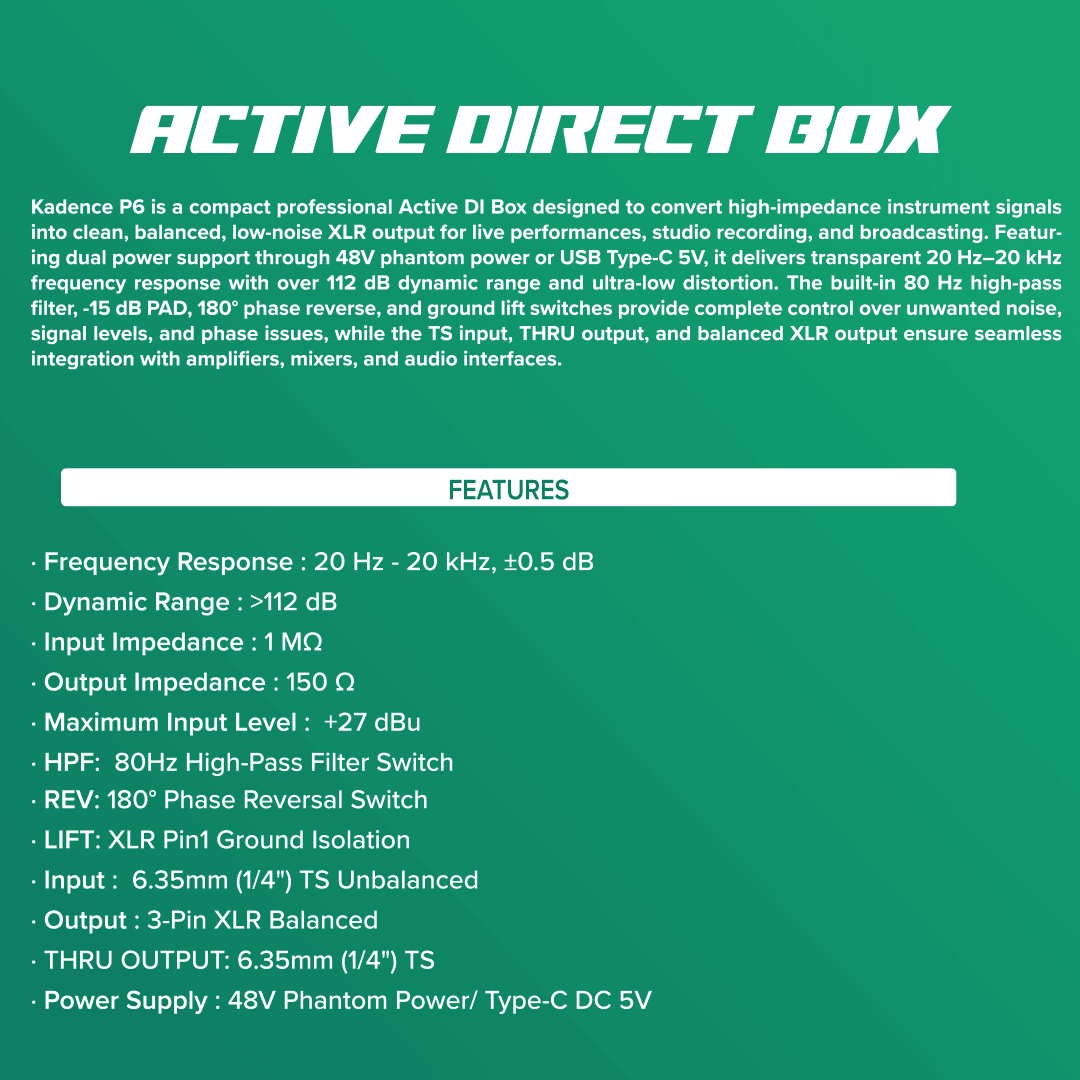

The Kadence P6 Jamming Series Active DI Box is designed to connect instruments and other unbalanced audio sources to professional audio systems. It helps deliver a clean and reliable signal to mixers, PA systems and recording equipment.
The unit can operate using 48V phantom power from a compatible mixer or audio system, or through 5V DC power via USB Type-C. This provides flexibility for both stage and studio setups.

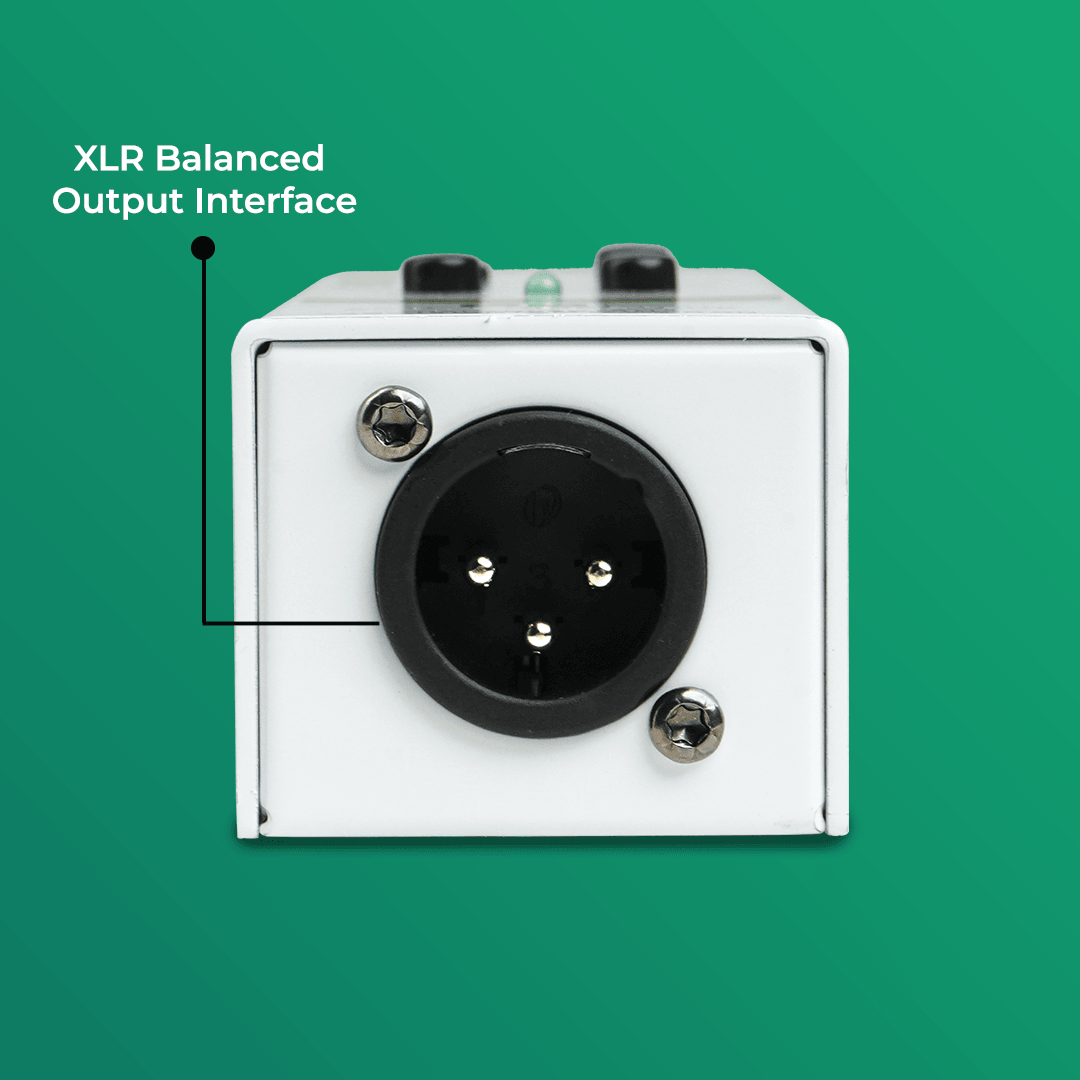

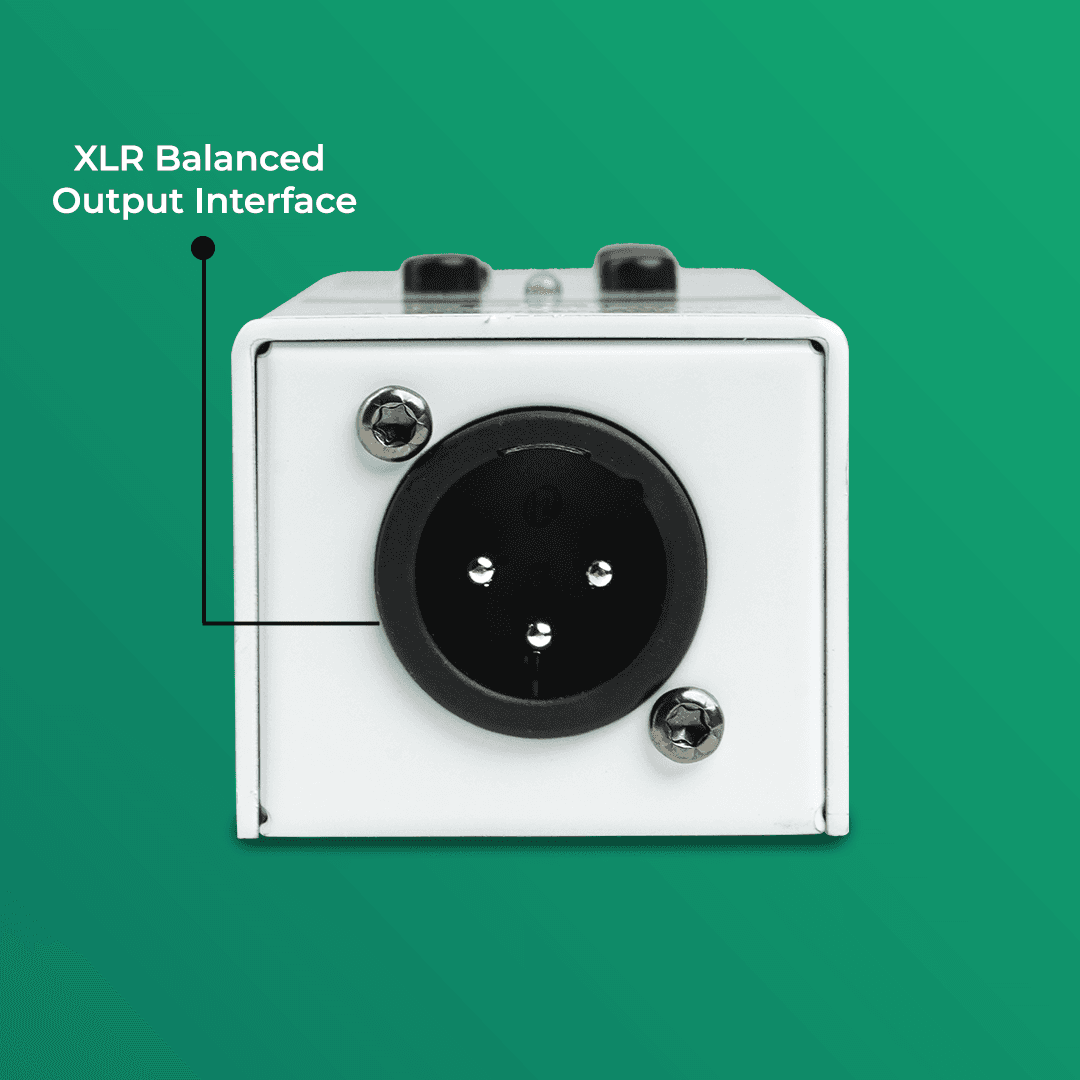

The balanced XLR output allows the instrument signal to be connected to a mixer, stage box or other professional audio equipment using a standard XLR cable, making it suitable for longer cable runs in live sound environments.

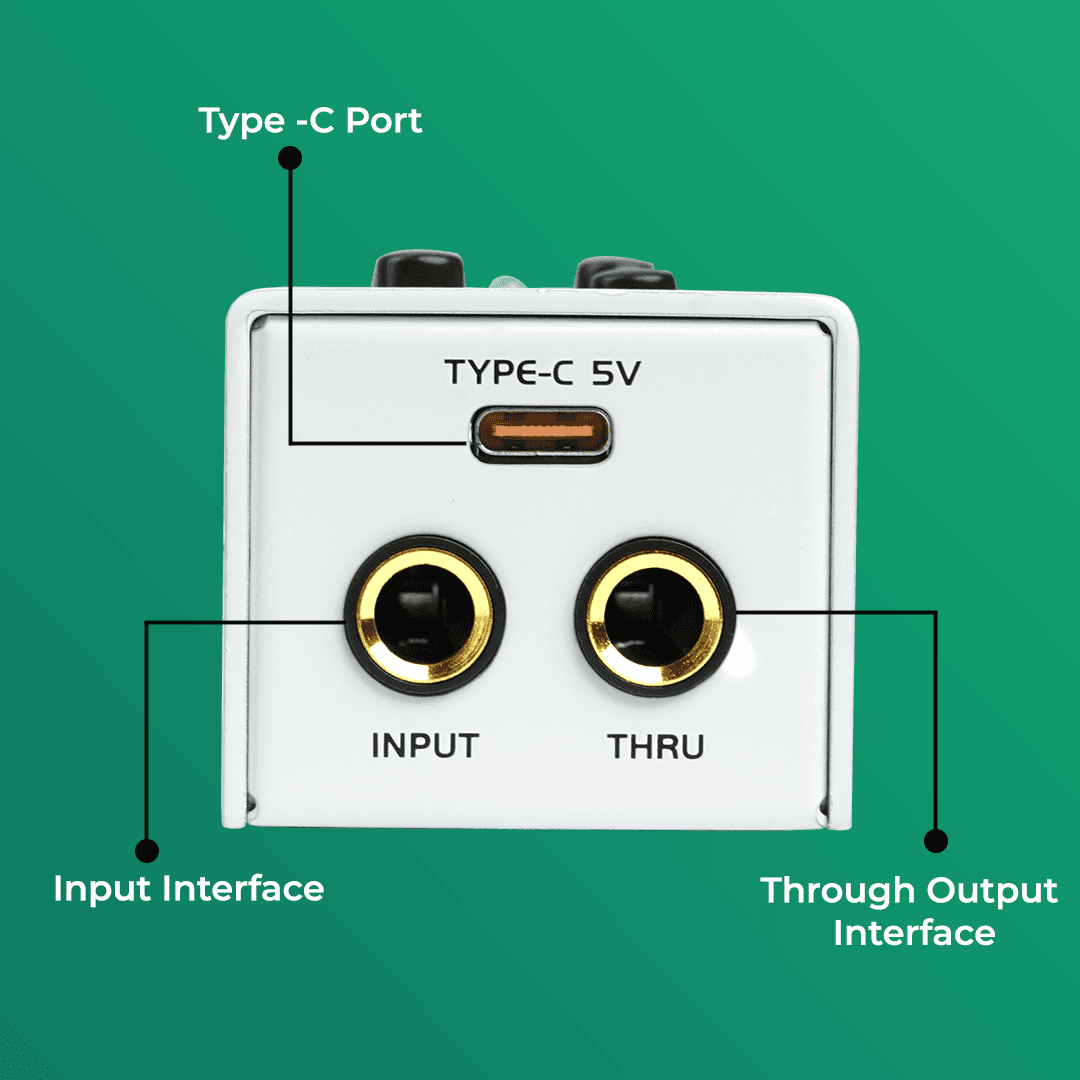

The 6.35 mm parallel THRU output allows the original instrument signal to be passed to another device while simultaneously sending the signal to the mixer through the XLR output. This is useful when connecting an instrument to an amplifier and PA system at the same time.

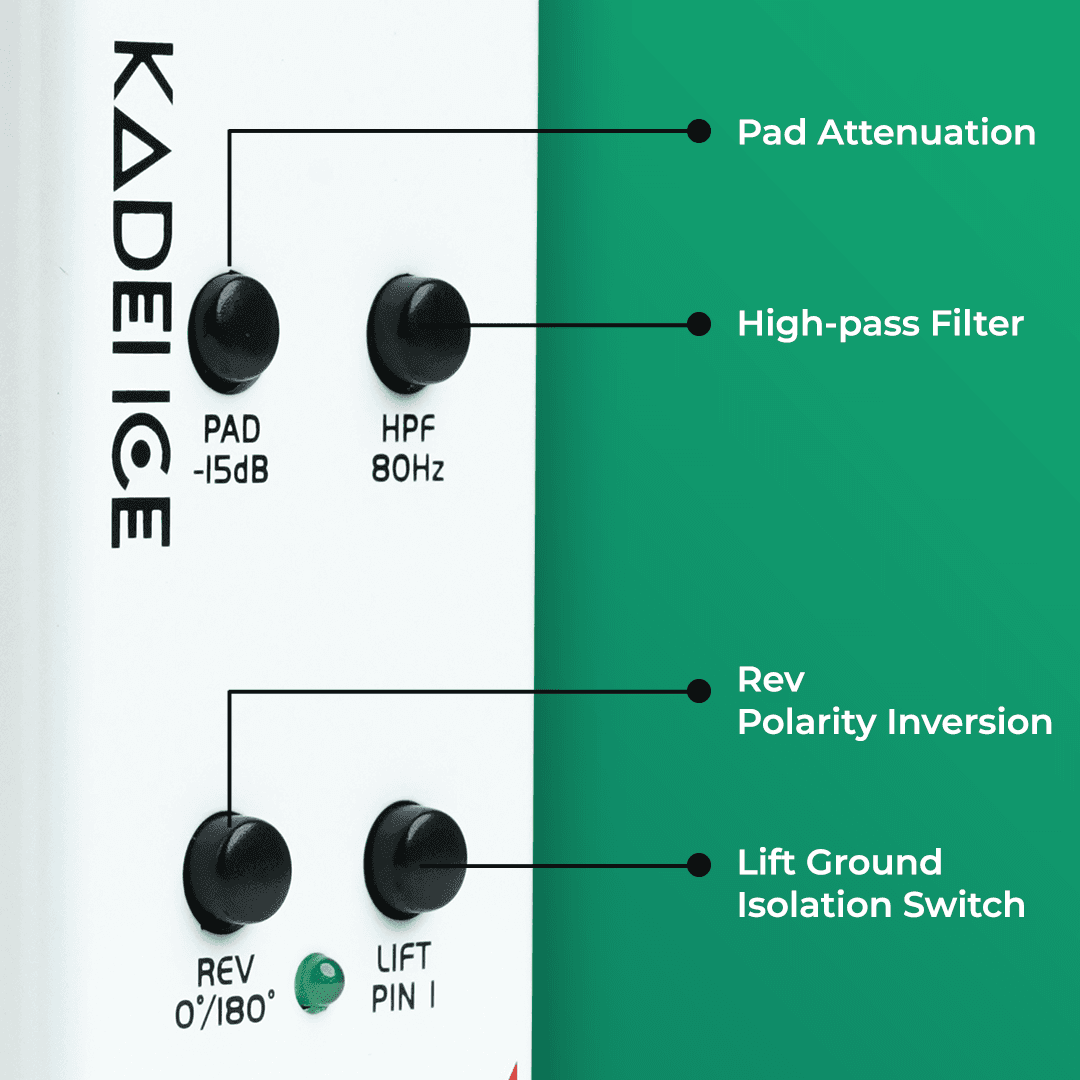

-15 dB PAD for Strong Signals: The built-in -15 dB PAD reduces the input signal level when working with high-output instruments or sources. This helps provide additional headroom and reduces the possibility of overloading the connected audio system.
The 80 Hz high-pass filter helps reduce unwanted low-frequency content such as rumble, stage vibration and other low-end noise. It can be useful when a cleaner and more controlled low-frequency response is required.
Total price
Total price
No reviews yet. Be the first to review this instrument.
A DI (Direct Injection) box is an audio device that allows instruments and other unbalanced audio sources to be connected to professional mixers, PA systems and recording equipment through a balanced XLR connection.
The P6 is an active, single-channel DI box designed for instruments and other compatible unbalanced audio sources.
It can be powered in two ways: 48V phantom power from a compatible mixer or audio system, or 5V DC through its USB Type-C connection.
It is suitable for instruments with a 6.35 mm (1/4") TS output, including guitars, bass guitars, keyboards and other compatible electronic instruments.
The THRU output sends a parallel copy of the incoming signal to another device. For example, you can send the instrument signal to an amplifier while simultaneously sending the signal to the mixer through the XLR output.
The PAD reduces the incoming signal level by 15 dB. It is useful when connecting a high-output instrument or source that may otherwise produce an excessively strong signal.
The high-pass filter reduces very low-frequency content below approximately 80 Hz, helping minimize unwanted rumble, stage vibration and excessive low-end energy when required.
The phase switch reverses the phase relationship of the signal by 180° when selected. This can be useful when combining signals from multiple sources where phase-related cancellation or tonal changes occur.
The Ground Lift function helps reduce unwanted hum and buzz that can occur because of grounding differences between connected audio equipment. It can be particularly useful in live stage and studio setups.
Yes. Connect the instrument to the 6.35 mm input and connect the balanced XLR output to a suitable mixer, stage box or audio interface input.
Yes. Connect the instrument to the input, connect the THRU output to the amplifier, and connect the XLR output to the mixer. This allows the instrument to feed both systems simultaneously.
Yes. Its active design, balanced XLR output, THRU connection, PAD, high-pass filter, phase switch and Ground Lift make it suitable for live performances, rehearsals, PA systems, studios, conferences and other professional audio applications.
You get a 1-year manufacturing defect warranty and a 7-day replacement window for manufacturing defects.
